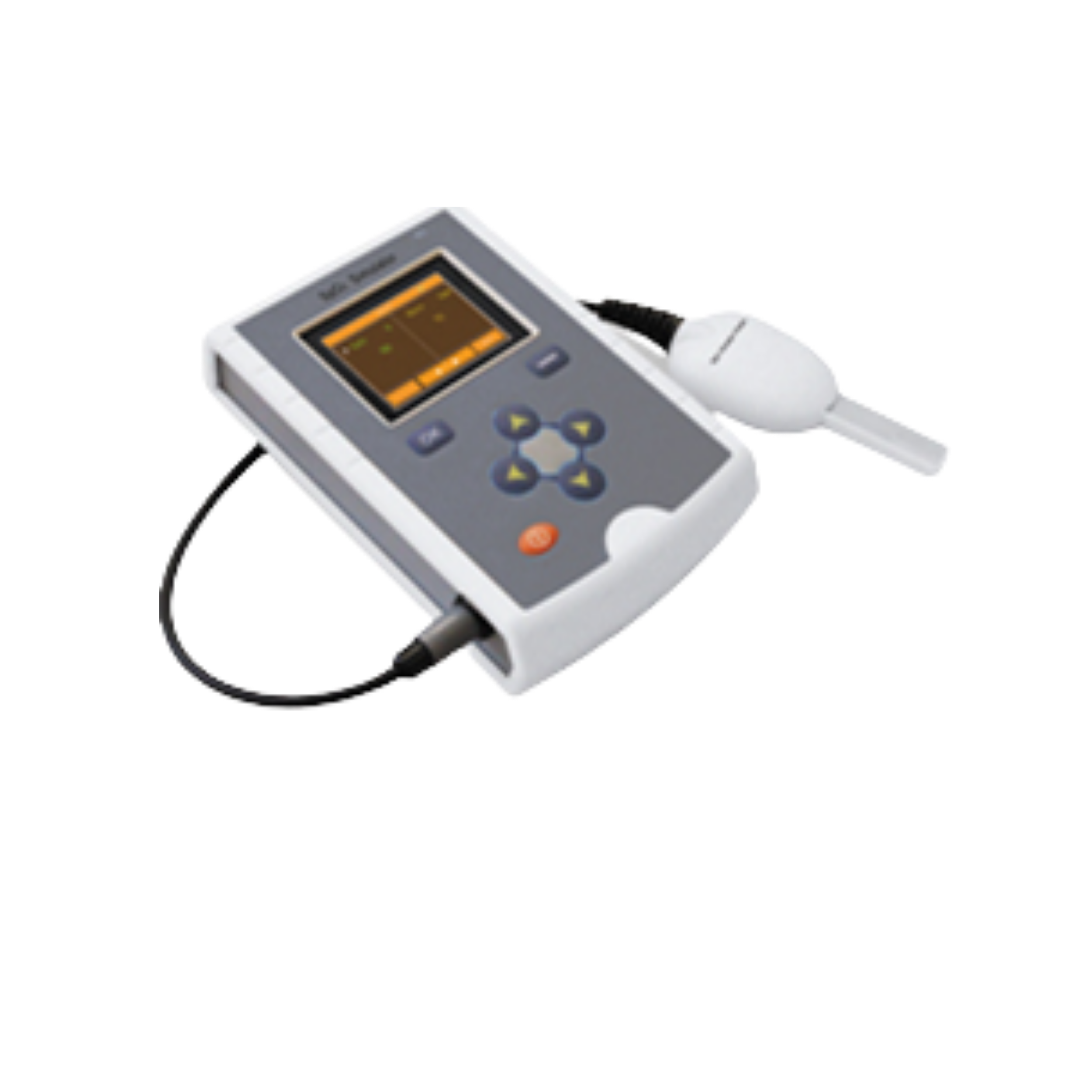

MS100 SpO2 Simulator is a kind of Separated SpO2 simulator, small and light. It can perform a series of tests for the oximeter by simulation means, and gives cognizance of veracity about the oximeter. Because the oximeter manufacturer may use different R-curves, some R-curves used abroad currently have been embedded.
Features and main functions are listed in the description.
• SpO2 Measuring range: 35%~100%
• Pulse rate Measuring range: 25bpm~250bpm
• Amplitude Measuring range: 0.000%~20.000%
• Patient state: 24 conditions presetting and 8 conditions as default after start.
• Voltage: DC 3.6V~4.2V
• Power Supply Voltage: 3.7 rechargeable lithium battery × 1
• Battery working life: Charge and discharge no less than 500 times.
Separated connection between simulator probe and host, operation and test are more convenient. 262K color and 320*240 TFT, adjustable brightness level. Film key-press, makes the operation more comfortable. Power with chargeable lithium battery, can display the charge information of battery. Key volume, can open or close.
• Separated connection between simulator probe and host
• 262K color and 320*240 TFT, adjustable brightness level
• Film key-press, makes the operation more comfortable
• Power with chargeable lithium battery, can display the charge information of battery
• Key volume, can open or close
• Oxygen saturation simulation
• Pulse rate simulation
• Patient state simulation preset
• Can test the reaction time of device
• Can simulate the SpO2 and pulse rate under different amplitude
• Can test the performance of device under different interference source
• Can select different R-curve
